Section 17-01: Lighting, Exterior
1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Lamp, Rear Hi-Mount




Lamp Assembly

Removal

  1. Remove two screws retaining the rear hi-mount lamp (13A613).

  1. Pull rear hi-mount lamp away from the top.

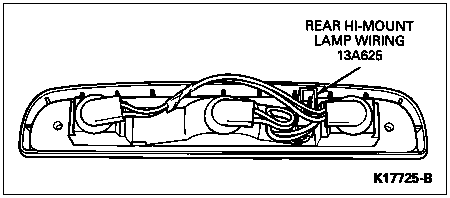

  1. Disconnect rear hi-mount lamp wiring (13A625) from vehicle wiring.

Installation

  1. Follow removal procedures in reverse order.







Socket

Removal

  1. Remove rear hi-mount lamp as described in Lamp, Rear Hi-Mount, Removal in this section.

  1. NOTE: The lamp sockets are not twisted into rear hi-mount lamp.

    Pull lamp socket and wiring (13410) from rear hi-mount lamp. Note the socket and wiring position in lamp assembly.

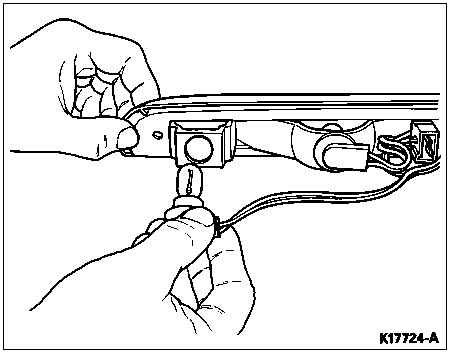

  1. Replace miniature bulb (13466) by pulling out of lamp socket and wiring.

Installation

  1. Follow removal procedures in reverse order.
