Section 07-01: Transmission, Automatic, E4OD
1997 F-250 Heavy Duty, F-350 and F-Super Duty Workshop Manual
IN-VEHICLE SERVICE

Fluid Cooler Lines

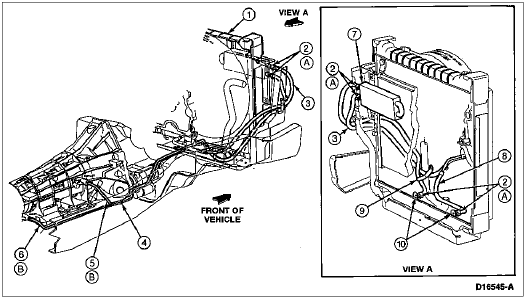

Transmission Fluid Cooler Tubes, F-250 Heavy Duty, F-350 and F-Super Duty, 5.8L and 7.5L Engines

ItemPart NumberDescription
17A095Transmission Fluid Cooler
28005Radiator
37A031Fluid Cooler Tube
47D273Fluid Tube Connector
5372223-S101C-Clip
67N291Transmission Fluid Cooler Line Clip
77A030Fluid Cooler Inlet Tube
8—Connector (Part of 7000)
97000Automatic Transmission
10376240-SClamp
11N809635-S165AHose
127F113Inlet Tube
137F112Outlet Tube
A—Tighten to 16-24 Nm
(12-18 Lb-Ft)
B—Tighten to 3.1-4.3 Nm
(27-38 Lb-In)
C—Tighten to 10-14 Nm
(7.4-10.3 Lb-Ft)

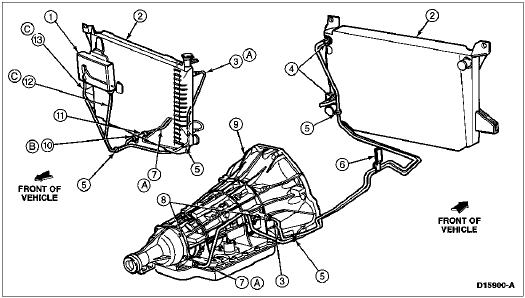

Transmission Fluid Cooler Tubes, F-Super Duty Motorhome Chassis (Except Diesel)

ItemPart NumberDescription
1W611102-S2Screw and Washer
26K761Fluid Cooler Upper Bracket
37D273Tube Connector
47A031Outlet Tube
57A030Fluid Cooler Inlet Tube
67F113Inlet Tube
7372223-S101C-Clip
8376240Clamp
9N809635Hose
1055736Nut
117A095Transmission Fluid Cooler
126C645Insulator
137N291Transmission Cooler Line Clip
146010Cylinder Block
A—Tighten to 7-10 Nm
(62-88 Lb-In)
B—Tighten to 16-24 Nm
(12-18 Lb-Ft)
C—Tighten to 24-30 Nm
(18-22 Lb-Ft)
D—Tighten to 3.1-4.3 Nm
(27-38 Lb-In)
E—Tighten to 16-24 Nm
(12-18 Lb-Ft)

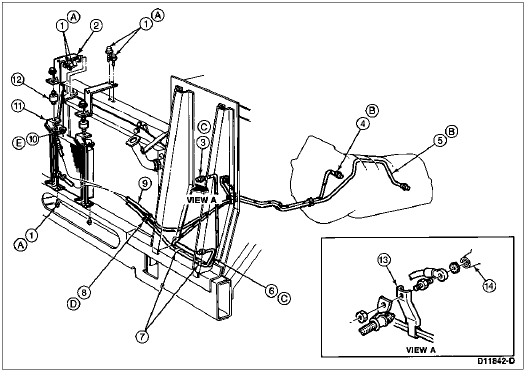

Transmission Fluid Cooler Tubes, F-250 Heavy Duty, F-350 and F-Super Duty (7.3L Diesel)

ItemPart NumberDescription
18005Radiator
27C107Clamp
37890Hose
4372223-S101C-Clip
57A031Outlet Tube
67A030Fluid Cooler Inlet Tube
77A095Transmission Fluid Cooler
8N809635-S183AHose
9—Strap
107G058Connector
A—Tighten to 3.1-4.3 Nm
(27-38 Lb-In)
B—Tighten to 16-24 Nm
(12-18 Lb-Ft)
