1994 PCED OBDI-A | SECTION 20A: Diesel Diagnosis—7.3L IDI Engine |
Test Equipment
The following test equipment (Figures 1 through 4) is required for adjusting idle speed and timing.
Figure 1: Rotunda 078-00200 Dynamic Timing Meter

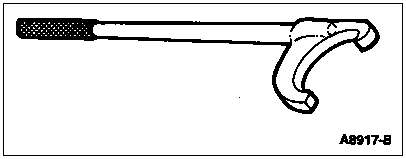

Figure 2: T83T-9000-B Injection Pump Mounting Wrench

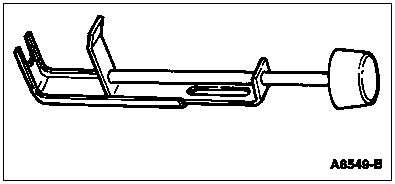

Figure 3: Throttle Control Tool D83T-9000-E
Figure 4: T83T-9000-C Injection Pump Rotating Tool
The following test equipment (Figures 5 and 6) is required for performing the Engine Performance Diagnostic Procedure.
Figure 5: Rotunda 014-00761 Pressure Test Kit
Figure 6: T83T-9000-A Fuel Transfer Pump
Pressure Adapter
The following test equipment (Figures 7 and 8) is required for performing the "WAIT TO START" Indicator Diagnostic Procedure and the Fast Start Glow Plug System Diagnostic Procedure.

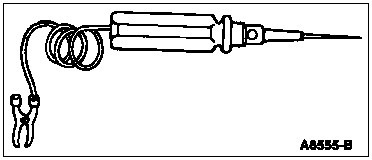

Figure 7: 12-Volt Test Lamp

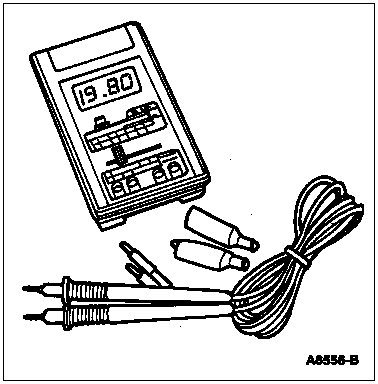

Figure 8: Rotunda 007-00001 Digital
Volt-Ohmmeter
The following test equipment (Figures 9 and 10) is required for injection nozzle testing and cleaning.

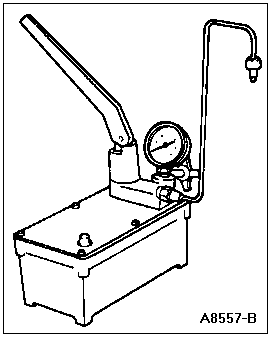

Figure 9: Rotunda Injector Nozzle Tester 014-00300, Nozzle Tester D83T-9000F or equivalent

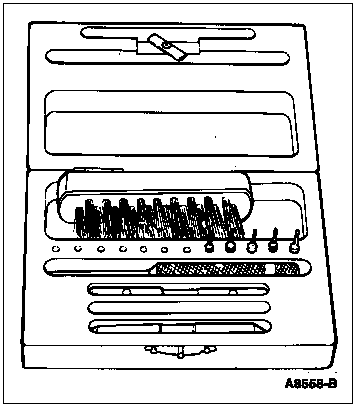

Figure 10: Rotunda Injector Nozzle Cleaning Kit 014-00301, Nozzle Cleaning Kit D83T-9000-G or equivalent
