V: Cylinder Identification (CID) Introduction

V: Pinpoint Tests

Note

Enter this pinpoint test only when directed here from the symptom flowcharts.

Remember

This pinpoint test is intended to diagnose only the following:

• powertrain control module (PCM) (12A650)
• injector driver module (IDM)

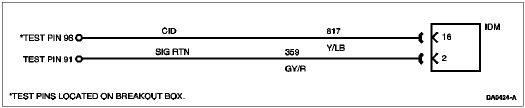

• harness circuits: cylinder identification (CID)

Description

The CID output provides information to the IDM so that the injector current can be applied to the correct injector.

P1219 = CID stuck low

P1667 = CID circuit failure
