Brake Shoes and Linings

Removal

1. Raise the vehicle so the wheels (1007) clear the floor, and install safety stands under the rear axle (4001).

2. Remove the wheel and brake drum (1126). Go to Step 4. If the brake drum does not clear the rear brake shoes and linings (2200), go to Step 3.

3. NOTE: Some brake drums will not come off easily.

   Using a screwdriver, move the brake shoe adjusting lever (2A176) off the brake shoe adjusting screw nut (2047) and, using Brake Adjustment Tool D81L-1103-C or equivalent, loosen brake shoe adjusting screw nut to obtain clearance for brake drum removal.

   Remove the brake drum.



4. NOTE: A small amount of brake fluid is always present and acts as a lubricant for the wheel cylinder piston.

   Inspect:

   • the rear wheel cylinder (2261) for excessive leakage that can contaminate brake system parts, and rebuild as necessary.
   • rear brake shoes and linings for contamination, and replace as necessary.
   • rear brake shoes and linings for minimum thickness, and replace as necessary.
   • springs for heat discoloration, and replace as necessary.

5. NOTE: Brake drum maximum inside diameter is molded into the face of the brake drum.

   Using Rotunda Brake Drum Micrometer 104-00046 or equivalent, measure the brake drum inside diameter.

   Replace brake drum if maximum inside diameter is exceeded.



6. Remove the brake shoe retracting spring (2296).

7. Remove the parking brake lever bolt lock nut, at the back of the brake backing plate (2211), and the parking brake lever bolt.

8. Remove the parking brake rear cable and conduit (2A635) from the parking brake lever (2A637) and remove the parking brake lever.

9. Disconnect the brake shoe adjusting lever cable (2A178) from the brake shoe adjusting lever and remove the brake shoe adjusting lever cable.

10. Remove the cable guide.

11. Remove the adjusting lever return spring and the brake shoe adjusting lever.

12. Remove the brake shoe adjusting screw spring (2049).

13. Remove the brake adjuster screw assembly.

    Automatic Adjuster Components (Axle Shaft Shown Removed for Clarity Only)



    Item	Part Number	Description
    1	2A178	Brake Shoe Adjusting Lever Cable
    2	2A179	Cable Guide
    3	2068	Brake Shoe Hold-Down Spring
    4	2A180	Adjusting Lever Return Spring
    5	2A176	Brake Shoe Adjusting Lever
    6	2047	Brake Adjuster Screw Assy
    7	2049	Brake Shoe Adjusting Screw Spring

14. Remove brake shoe anchor pin guide plate (2028).

15. Remove the brake shoe hold-down springs (2068), the brake shoe hold-down spring pins (2069) and the rear brake shoes and linings.

Installation

1. Lubricate the brake backing plate friction points. Use Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft WA-10) or an equivalent silicone compound meeting Ford specification ESE-M1C171-A.

2. Position the rear brake shoes and linings and install the brake shoe hold-down spring pins and the brake shoe hold-down springs.

3. Install the brake shoe anchor pin guide plate.

4. NOTE: To prevent incorrect installation, the socket end of each brake adjuster screw (2041) is stamped R or L.

   Apply Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft WA-10) or an equivalent silicone compound meeting Ford specification ESE-M1C171-A and assemble the brake adjuster screw assembly.

5. Position the brake adjuster screw assembly.

6. Install the brake shoe adjusting screw spring.

7. Position the brake shoe adjusting lever cable.

8. Install the cable guide.

9. Position the adjusting lever return spring and the brake shoe adjusting lever and hook the brake shoe adjusting lever cable to the brake shoe adjusting lever.

   Automatic Adjuster Components (Axle Shaft Shown Removed for Clarity Only)



   Item	Part Number	Description
   1	2A178	Brake Shoe Adjusting Lever Cable
   2	2A179	Cable Guide
   3	2068	Brake Shoe Hold-Down Spring
   4	2A180	Adjusting Lever Return Spring
   5	2A176	Brake Shoe Adjusting Lever
   6	2047	Brake Adjuster Screw Assy
   7	2049	Brake Shoe Adjusting Screw Spring

10. Test the operation of the automatic self-adjuster.

    1. Pull the brake shoe adjusting lever cable and check that the brake shoe adjusting lever rotates the brake shoe adjuster assembly.
    2. Release the brake shoe adjusting lever cable and check that the brake shoe adjusting lever advances to the next notch on the brake shoe adjusting screw nut.

11. Install the parking brake lever.

    1. Attach the parking brake rear cable and conduit to the parking brake lever and position the parking brake lever.
    2. Install the parking brake lever bolt and, at the back of the brake backing plate, the parking brake lever bolt lock nut.

12. Install the brake shoe retracting spring.

13. Adjust the brakes. Refer to Brake Shoe and Lining in the Adjustments portion of this section.

14. NOTE: The brake drum spring nut is not necessary for installation.

    Install the brake drum.

15. Install the tire and wheel assembly.

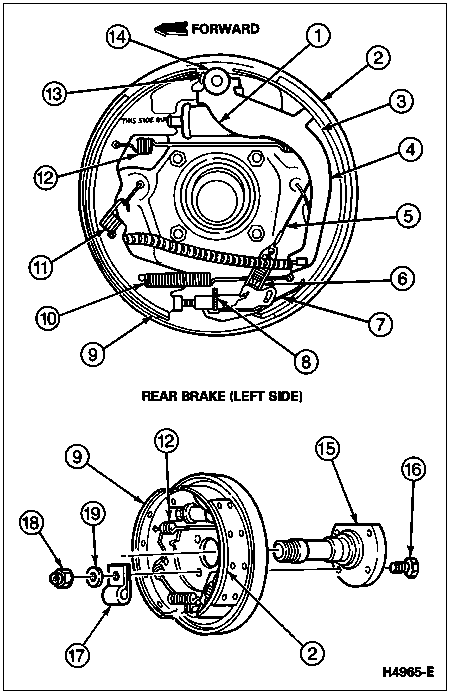

    Self-Adjusting Brake Assemblies



    Item	Part Number	Description
    1	2261	Rear Wheel Cylinder
    2	2200	Rear Brake Shoe and Lining, Secondary
    3	2A179	Cable Guide
    4	2A637	Parking Brake Lever
    5	2A178	Brake Shoe Adjusting Lever Cable
    6	—	Over-Travel Spring (Part of 2A178)
    7	2A176	Brake Shoe Adjusting Lever
    8	2047	Brake Shoe Adjusting Screw Nut
    9	2200	Rear Brake Shoe and Lining, Primary
    10	2049	Brake Shoe Adjusting Screw Spring
    11	2068	Brake Shoe Hold-Down Spring
    12	2296	Brake Shoe Retracting Spring
    13	2028	Brake Shoe Anchor Pin Guide Plate
    14	2027	Parking Brake Lever Bolt
    15	4001	Rear Axle
    16	2248	Bolt
    17	384568-S100	Retainer Clamp (DRW Vehicles Use Retaining Bracket)
    18	34449-S312	Nut
    19	351453-S8	Washer

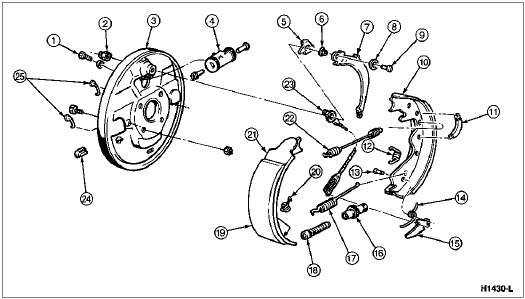

    Rear Web Ledge Single Anchor Brake, Disassembled



    Item	Part Number	Description
    1	20310-S	Rear Wheel Cylinder Retaining Bolt (2 Req'd)
    2	55690-S7	Lock Nut
    3	2211	Brake Backing Plate
    4	2262	Rear Wheel Cylinder
    5	2A642	Primary Brake Shoe Parking Brake Lever Link
    6	2A601	Parking Brake Link Spring
    7	2A637	Rear Parking Brake Lever
    8	2106	Parking Brake Lever Pin Retainer
    9	2027	Parking Brake Lever Bolt
    10	2200	Rear Brake Shoe and Lining, Secondary
    11	2A179	Cable Guide
    12	2068	Brake Shoe Hold-Down Spring
    13	2108	Adjusting Lever Pin
    14	2A180	Adjusting Lever Return Spring
    15	2A176	Brake Shoe Adjusting Lever
    16	2047	Brake Shoe Adjusting Screw Nut
    17	2049	Brake Shoe Adjusting Screw Spring
    18	2041	Brake Adjuster Screw
    19	—	Primary Shoe Lining (Part of 2200)
    20	2068	Brake Shoe Hold-Down Spring
    21	2200	Rear Brake Shoe and Lining, Primary
    22	2296	Brake Shoe Retracting Spring
    23	2A178	Brake Shoe Adjusting Lever Cable
    24	2092	Brake Adjusting Hole Cover
    25	2069	Brake Shoe Hold-Down Spring Pin
