1994 PCED OBDI-A
SECTION 6A: EEC-IV Pinpoint Test
Procedures
TD: Manual Lever Position (MLP) Sensor
Introduction
  TD: Pinpoint Tests

Note

You should enter this Pinpoint Test only when you been directed here from Diagnostic Routines, Section 2A.

Remember

This Pinpoint Test is intended to diagnose the Transmission Range sensor electrical system only. To prevent the replacement of good components, be aware that the following non-EEC areas may be at fault:

This Pinpoint Test is intended to diagnose only the following:

Description

Crown Victoria/Grand Marquis, Mark VIII, Town Car, Mustang, Thunderbird/Cougar, E-Series/F-Series/Bronco (AODE/4R70W)
Taurus/Sable, Continental (AX4S)
E/F-Series/Bronco (E4OD)

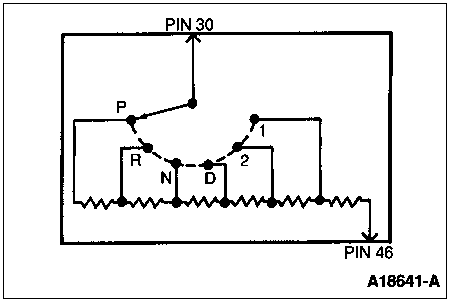

The Manual Lever Position (MLP) sensor is a ratiometric rotary switch mounted on the transmission range selector linkage. It indicates the position of the shift lever by way of a variable resistance.







Resistance Specification Table
Transmission Shift PositionResistance (ohms)
MinimumMaximum
Park37704607
Reverse13041593
Neutral660807
Overdrive361442
Drive, XXSecond190232
First7895
XX AX4S (Except SHO)
Escort/Tracer (4EAT)

The transmission range switch inputs are used by the Powertrain Control Module (PCM) to determine the position of the gear shift selector.







4EAT Transmission Range Switch State
Transmission Switch (at transmission connector)Switch State (Closed: Less than 5.0 ohms Open: Greater than 10,000 ohms)
Switch (at transmission 12-pin connector)Reference (at transmission 12-pin connector)
TRODIGN START/RUNClosed in "OD," open in all other positions
TRDIGN START/RUNClosed in "D," open in all other positions
TRLIGN START/RUNClosed in "L," open in all other positions
Switch
(at inhibit SW3-pin connector)		Reference
(at trans 12-pin
connector)
TRRIGN START/RUNClosed in "R," open in all other positions
Switch
(at inhibit SW3-pin connector)		Reference
(at inhibit 3-pin
connector)
PNPTo StarterClosed in "P" and "N," open in all other positions



4EAT Transmission Range Switch Voltage at EEC-IV Breakout Box
CircuitPinReference (Pin)Voltage at EEC-IV Breakout Box (Key on) (All voltages ±0.5 volts)
TRR23GND (40)VBAT in "R," 0V in all other positions
TRL45GND (40)VBAT in "L," 0V in all other positions
TRD18GND (40)VBAT in "D," 0V in all other positions
TROD38GND (40)VBAT in "OD," 0V in all other positions

Pinpoint Test Schematics

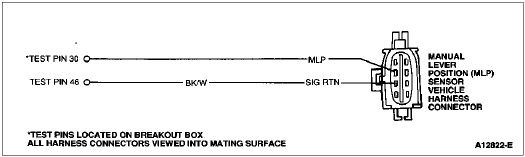

Crown Victoria/Grand Marquis, Mark VIII, Town Car, Mustang, Thunderbird/Cougar, E-Series/F-Series/Bronco (AODE/4R70W)

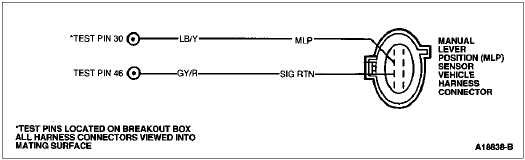

Taurus/Sable, Continental (AX4S)

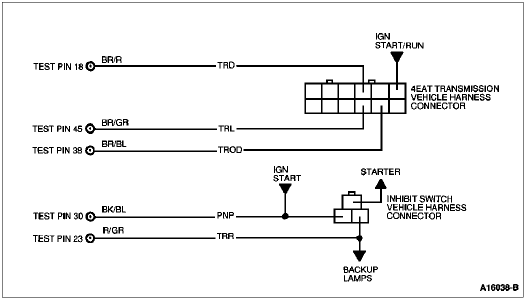

Escort/Tracer (4EAT)

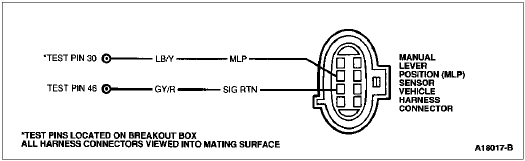

E/F-Series/Bronco (E4OD)
